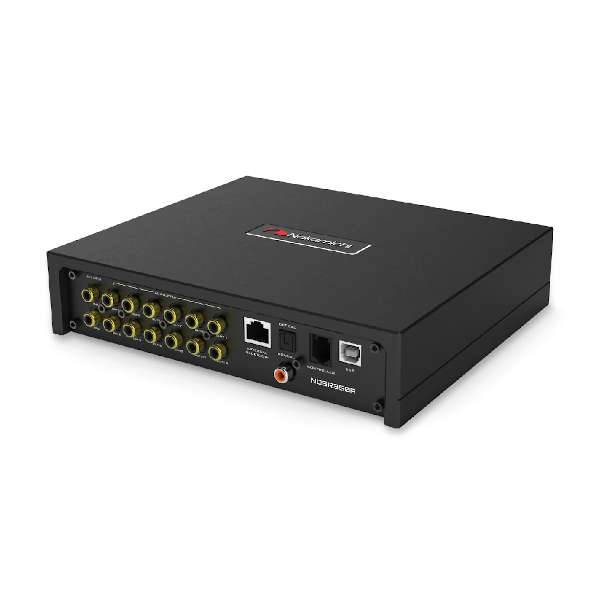

Name: DSP Amplificador Nakamichi Gama Alta • NDSR350A
SKU: NDSR350A
Availability: InStock

Manual usuario NDSR350A / Manual de usuario NDSR350A Portugués

Sonido HI-RES
Dynamic Range(RCA Input) ≥100dB
S/N(RCA Input) ≥98dB
THD ≤0.05%
Frequency Response 20Hz~20KHz
Input Impedance High Level Input:51Ω
Low level Output Impedeance 51Ω
Signal Input Range RCA Input:7.5Vpp;High Level Input:26Vpp
Signal Output Range RCA :7.5Vpp;Amplifier Maximum Power:2CH×80W(Bridged:1×160W)+4CH×40W+4CH×25W
Power DC 9V-15V
REM Input High Level Input Signal:H1+/H1-or ACC control cable
REM Output +12V Start up Voltage Output
Standby Power ≤0.1W
Gross Weight Approx. 2.24kg
Product Dimension(L×H×W) 217×48×186mm

Input Type 6 Channel high level,2 Channel low level,Built-in and External digital Buletooth ,Optical/Coaxial
Output Type 12 Channels low level,2CH×80W(Bridged:1×160W)+4CH×40W+4CH×25W power
Output Gain Gain range:Mute,-59dB~0.0dB
Output Signal EQ 31 band Equalizer Engine:
1.Frequency Range:20Hz~20KHz,1Hz Accuracy
2.Q value(Slope):0.404~28.852
3.3.Gain:-12.0dB~+12.0dB,0.1dB Accuracy
Output Signal Crossover Each output is equipped with multi-order high and low pass indepance filters.
1.Professional filtering types:Butter-W, Bessel,Link-Rill
2.Filtering frequency division point:20Hz~20kHz,Resolution 1Hz
3.Filter slope(Slope) setting:6dB/Oct to48dB/Oct and OFF
Output Phase and Time Alignment Each output channel can be adjusted for phase and delay,parameter range: phase in-phase or reverse-phase(0°/180°); Delay: 0.000 to 20.000 mill, 0 to 692 cm,0 to 273 inch.
Presets Save 6 presets into the device.

Peso	0,000 kg
